NTPsec

ntp.celkins.duckdns.org

Report generated: Fri Jun 26 23:36:05 2026 UTC
Start Time: Fri May 29 23:36:00 2026 UTC
End Time: Fri Jun 26 23:36:00 2026 UTC
Report Period: 28.0 days
Warning: plots clipped

Local Clock Time/Frequency Offsets

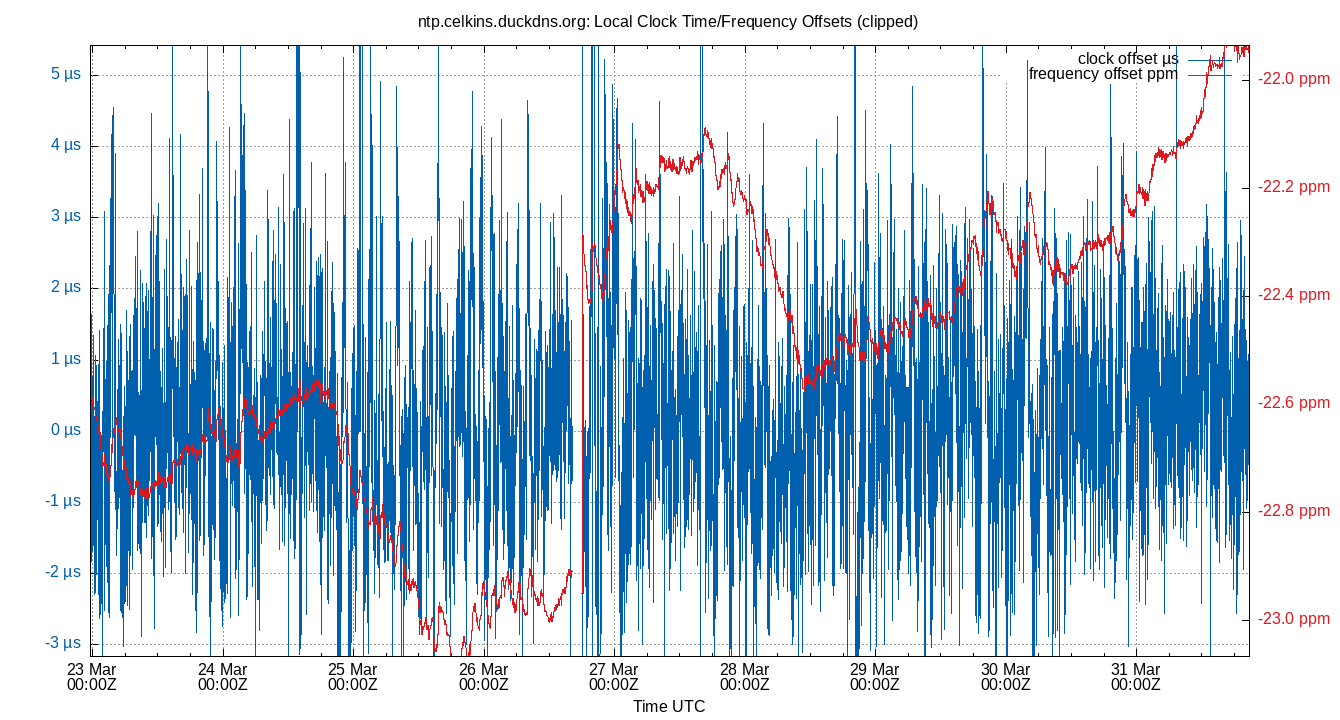

local offset plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local Clock Time Offset -9,659.219 -2.487 -1.548 0.082 1.846 2.895 7,315.189 3.394 5.382 83.225 0.488 µs 7.515 9246
Local Clock Frequency Offset -22.399 -22.362 -22.298 -21.772 -20.717 -20.601 -20.477 1.581 1.761 0.490 -21.686 ppm -9.277e+04 4.204e+06

The time and frequency offsets between the ntpd calculated time and the local system clock. Showing frequency offset (red, in parts per million, scale on right) and the time offset (blue, in μs, scale on left). Quick changes in time offset will lead to larger frequency offsets.

These are fields 3 (time) and 4 (frequency) from the loopstats log file.



Local RMS Time Jitter

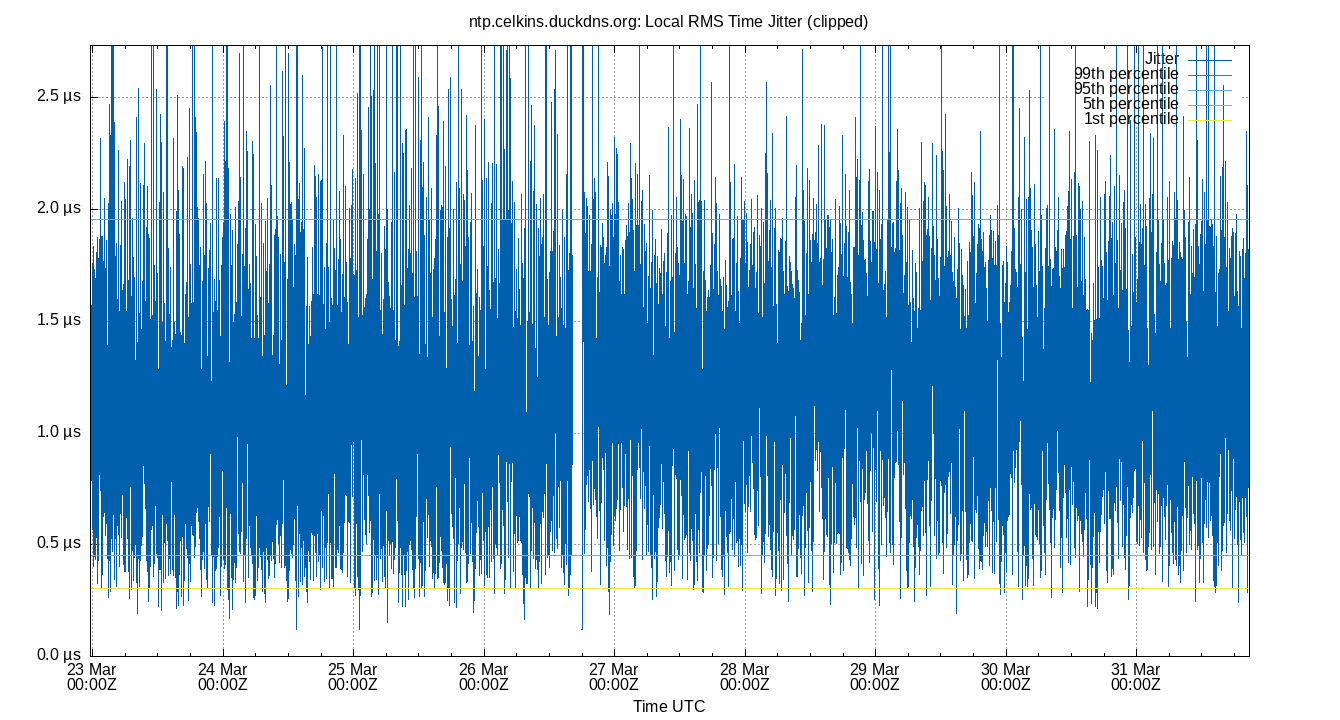

local jitter plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local RMS Time Jitter 0.099 0.226 0.310 0.796 1.788 2.371 5,614.831 1.478 2.145 65.720 1.902 µs 69.07 5352

The RMS Jitter of the local clock offset. In other words, how fast the local clock offset is changing.

Lower is better. An ideal system would be a horizontal line at 0μs.

RMS jitter is field 5 in the loopstats log file.



Local RMS Frequency Jitter

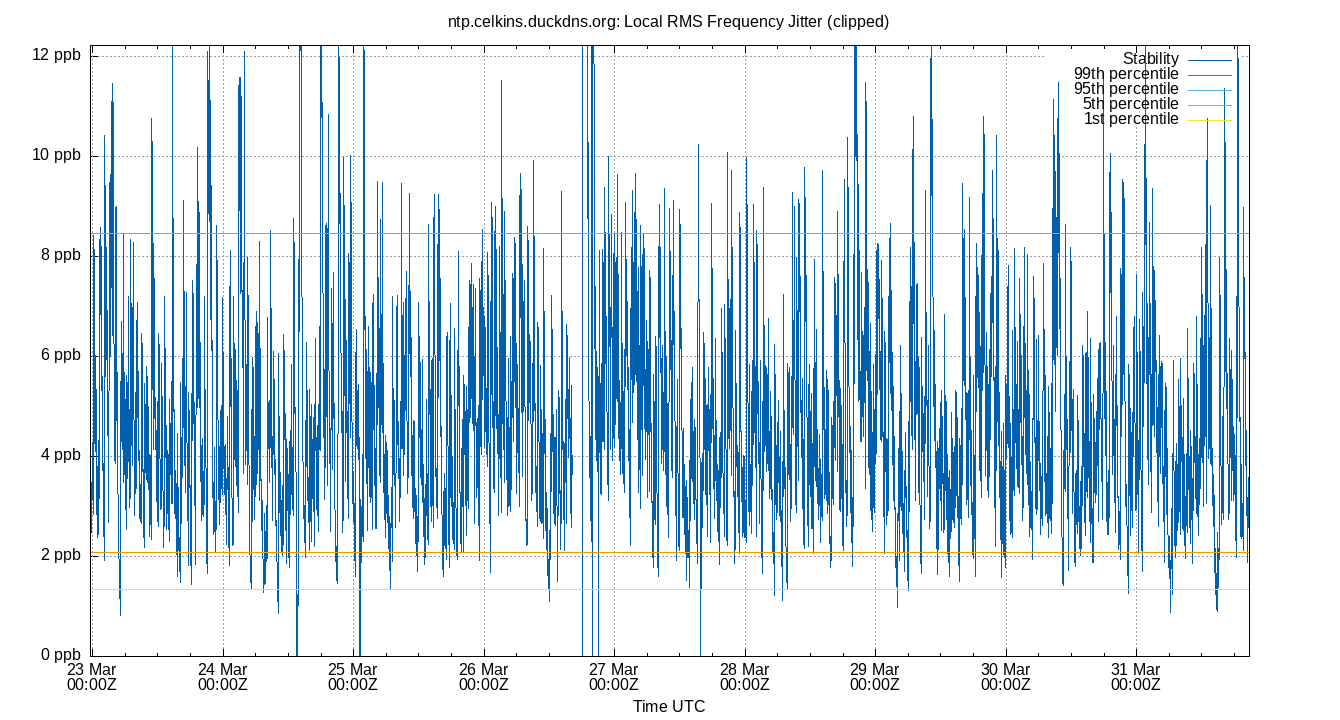

local stability plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local RMS Frequency Jitter 0.000 1.110 1.526 3.242 7.149 10.184 62.839 5.623 9.074 2.102 3.684 ppb 7.872 106.6

The RMS Frequency Jitter (aka wander) of the local clock's frequency. In other words, how fast the local clock changes frequency.

Lower is better. An ideal clock would be a horizontal line at 0ppm.

RMS Frequency Jitter is field 6 in the loopstats log file.



Local Clock Time Offset Histogram

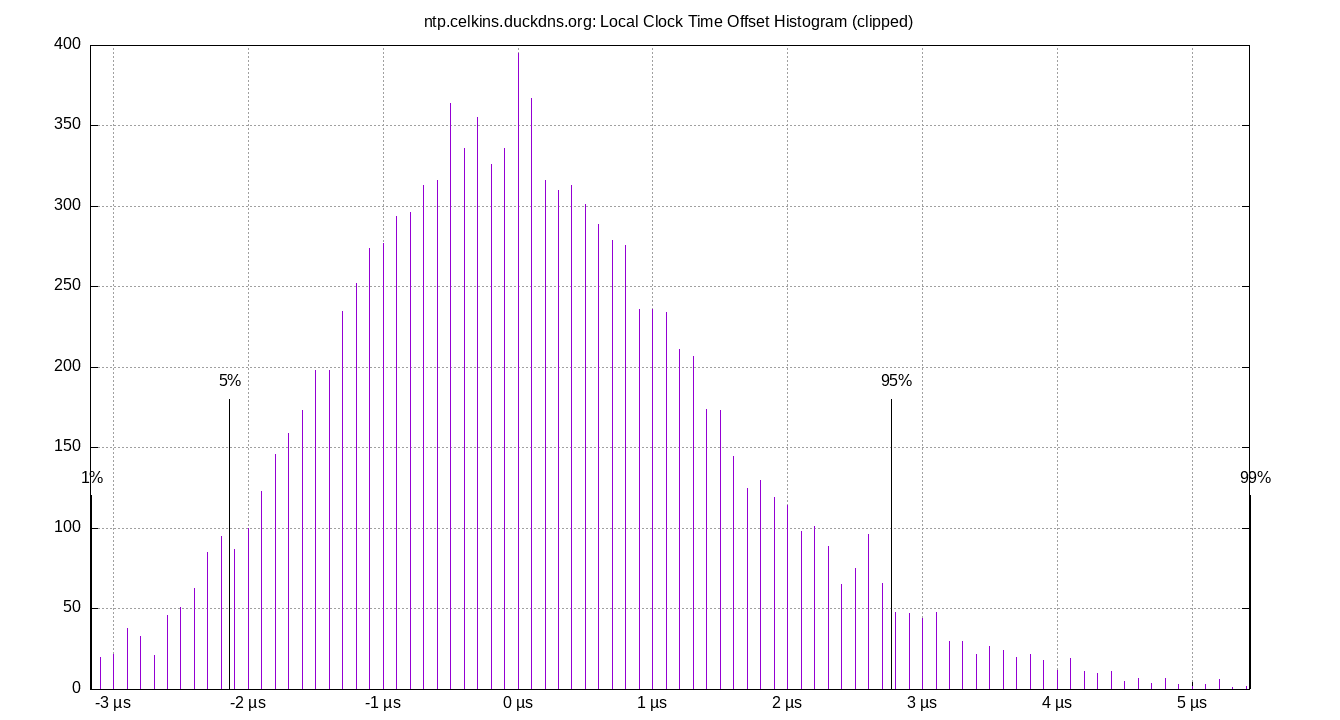

local offset histogram plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local Clock Offset -9,659.219 -2.487 -1.548 0.082 1.846 2.895 7,315.189 3.394 5.382 83.225 0.488 µs 7.515 9246

The clock offsets of the local clock as a histogram.

The Local Clock Offset is field 3 from the loopstats log file.



Local GPS

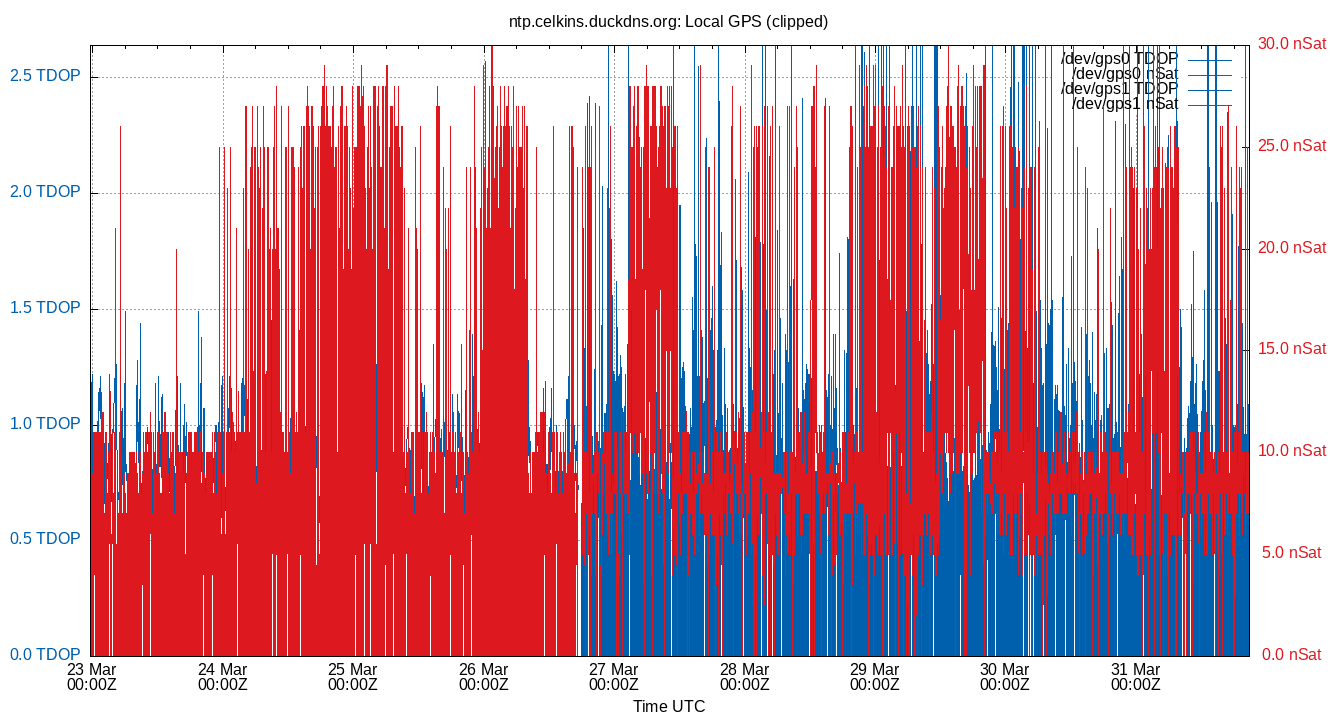

local gps plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
nSats 0.000 0.000 0.000 9.000 12.000 12.000 12.000 12.000 12.000 4.460 6.918 nSat 1.07 2.115
TDOP 0.000 0.000 0.000 0.680 1.170 1.520 3.580 1.170 1.520 0.419 0.595 1.34 4.467

Local GPS. The Time Dilution of Precision (TDOP) is plotted in blue. The number of visible satellites (nSat) is plotted in red.

TDOP is field 3, and nSats is field 4, from the gpsd log file. The gpsd log file is created by the ntploggps program.

TDOP is a dimensionless error factor. Smaller numbers are better. TDOP ranges from 1 (ideal), 2 to 5 (good), to greater than 20 (poor). Some GNSS receivers report TDOP less than one which is theoretically impossible.



Server Offsets

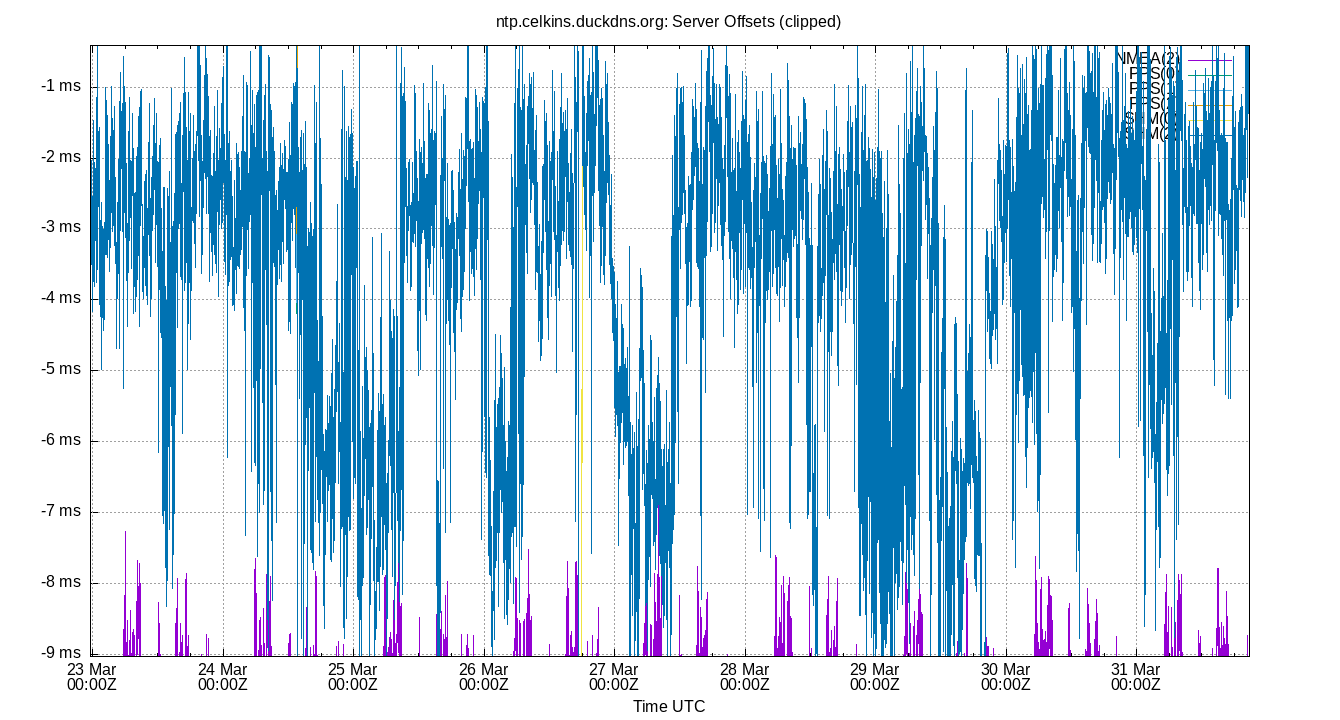

peer offsets plot

The offset of all refclocks and servers. This can be useful to see if offset changes are happening in a single clock or all clocks together.

Clock Offset is field 5 in the peerstats log file.



Server Offset NMEA(2)

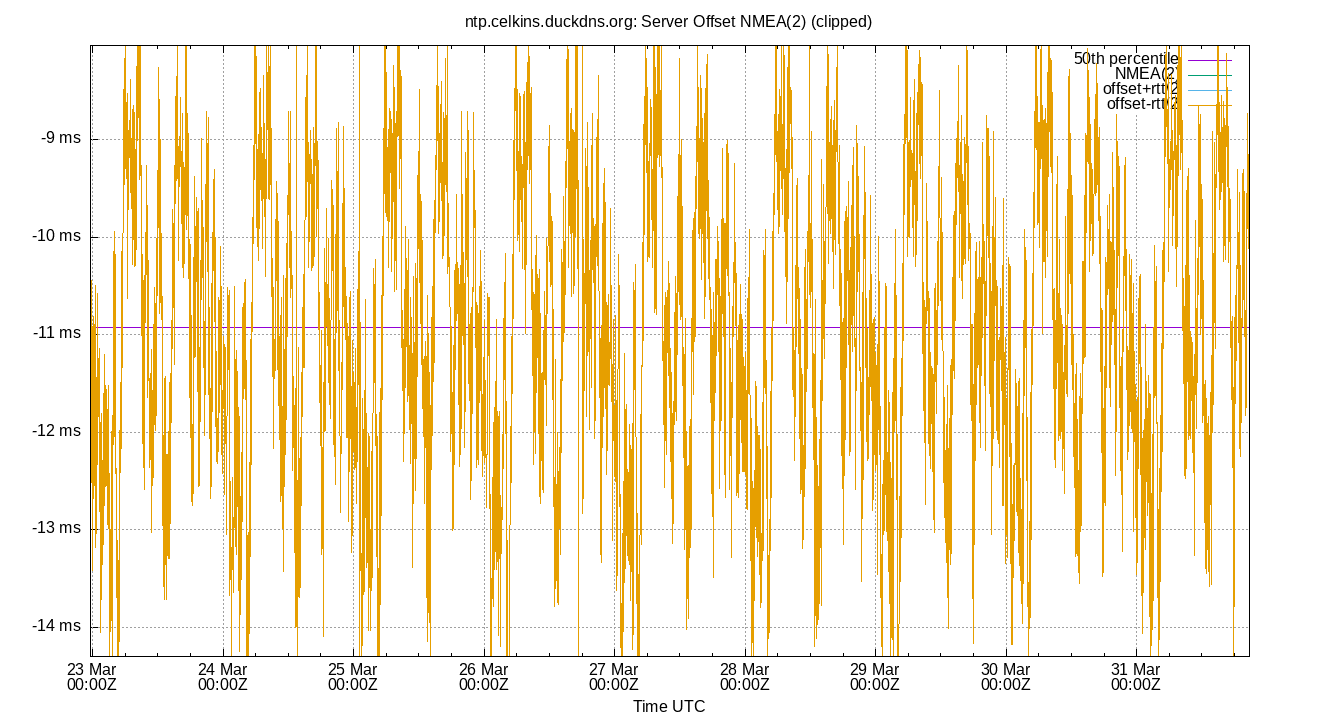

peer offset NMEA(2) plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset NMEA(2) -559.162 -559.162 -559.162 0.000 258.771 258.771 258.771 817.933 817.933 341.344 -100.131 ms -6.458 16.48

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



Server Offset PPS(0)

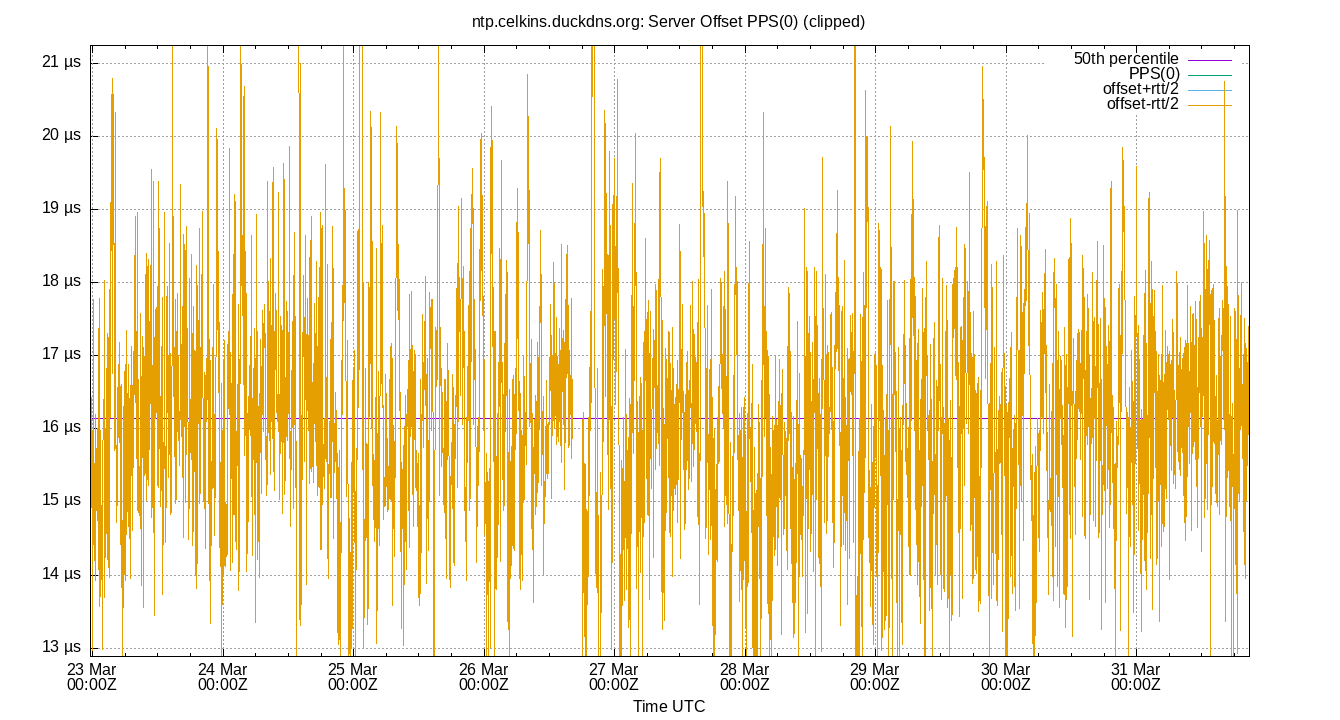

peer offset PPS(0) plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset PPS(0) -766.967 14.026 14.965 16.528 18.164 19.233 7,258.632 3.199 5.207 57.741 16.980 µs 113.3 1.357e+04

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



Server Offset PPS(1)

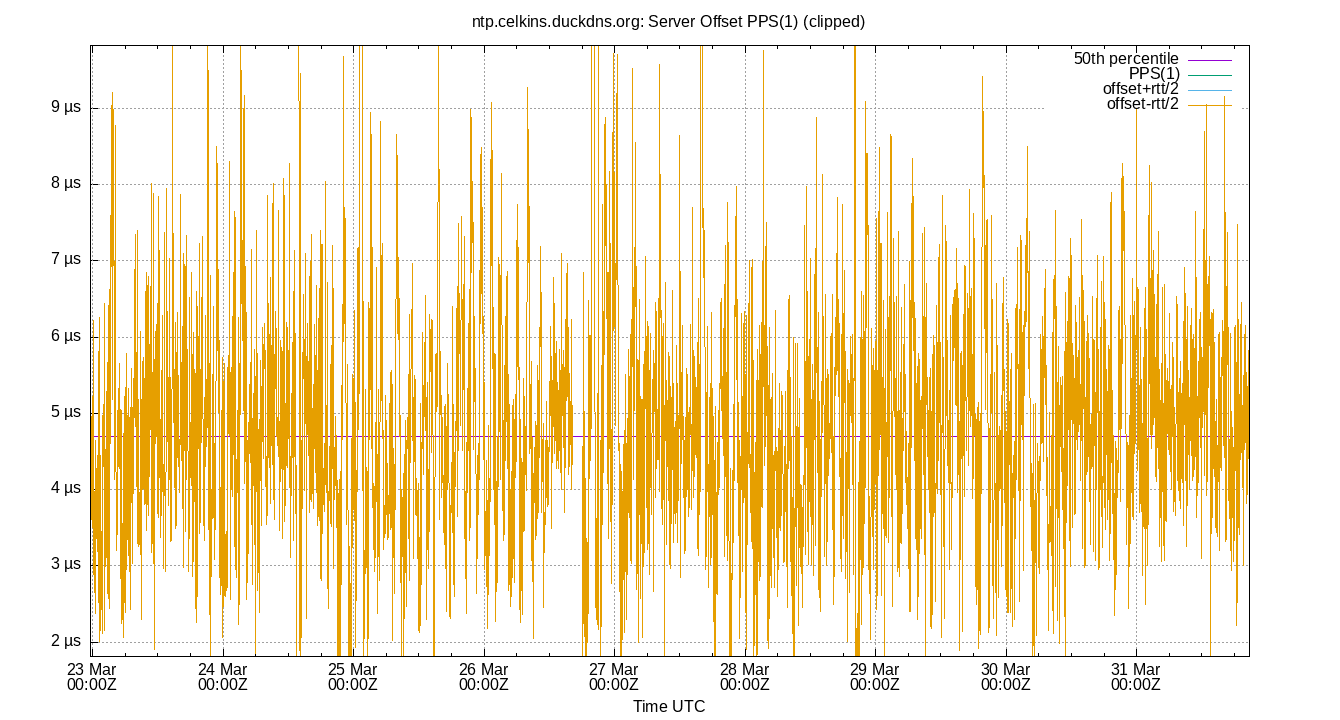

peer offset PPS(1) plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset PPS(1) -778.067 2.482 3.418 4.987 6.622 7.704 7,247.961 3.204 5.222 57.177 5.434 µs 112.8 1.361e+04

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



Server Offset PPS(2)

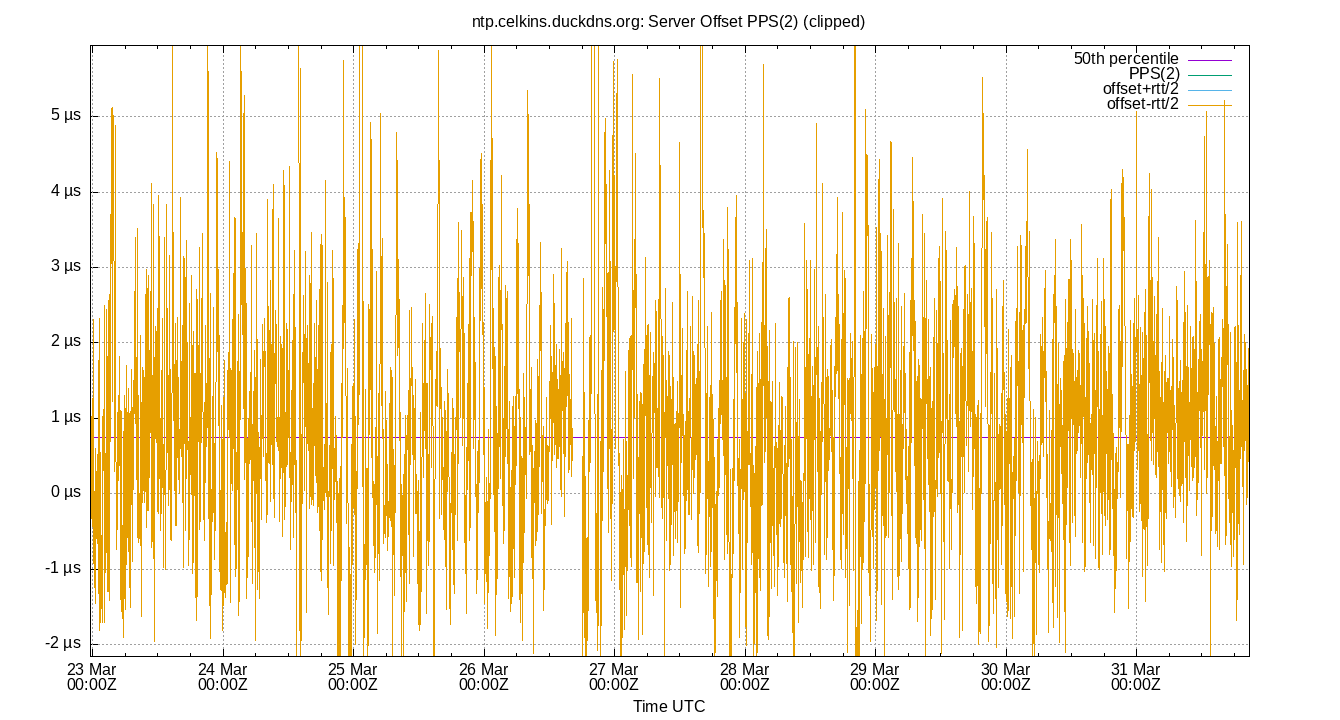

peer offset PPS(2) plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset PPS(2) -764.482 -1.493 -0.549 1.025 2.641 3.702 7,315.189 3.190 5.195 56.050 1.470 µs 116.2 1.465e+04

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



Server Offset SHM(0)

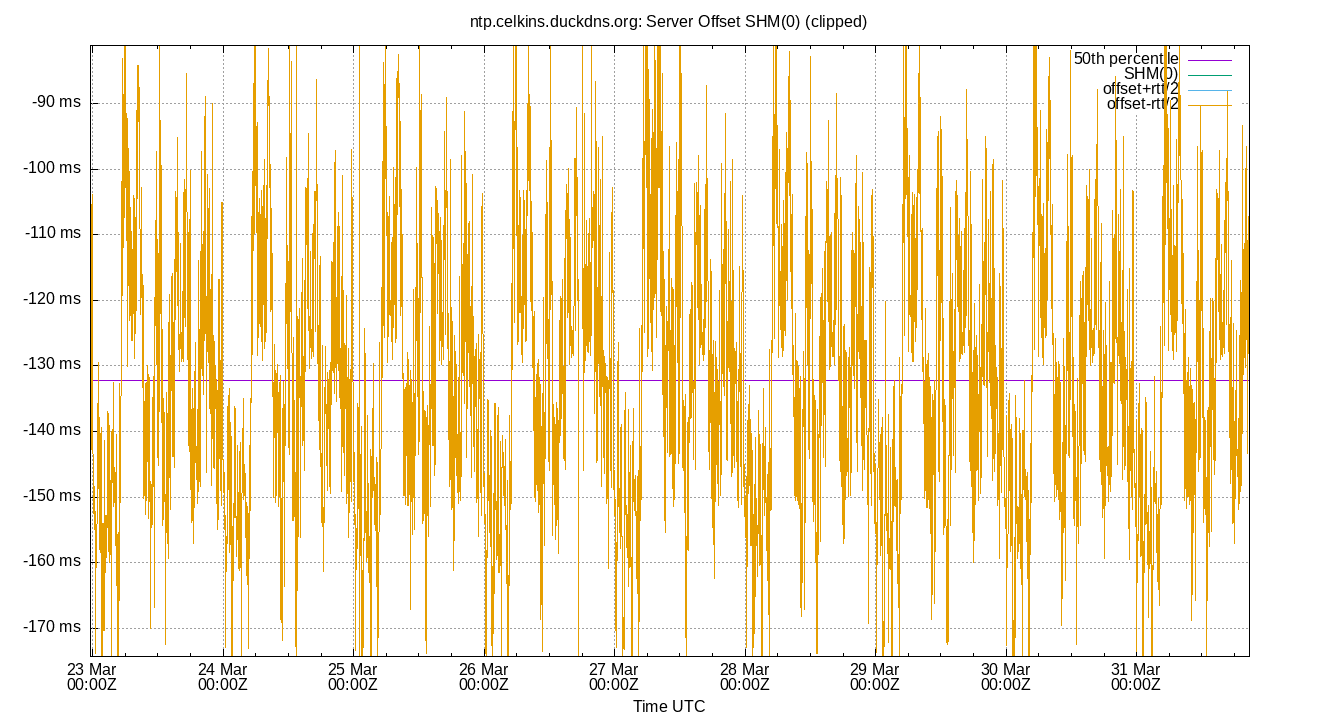

peer offset SHM(0) plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset SHM(0) -641.035 -304.474 -292.102 -267.666 -232.397 -218.834 -9.659 59.705 85.640 18.725 -265.818 ms -3554 5.468e+04

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



Server Offset SHM(2)

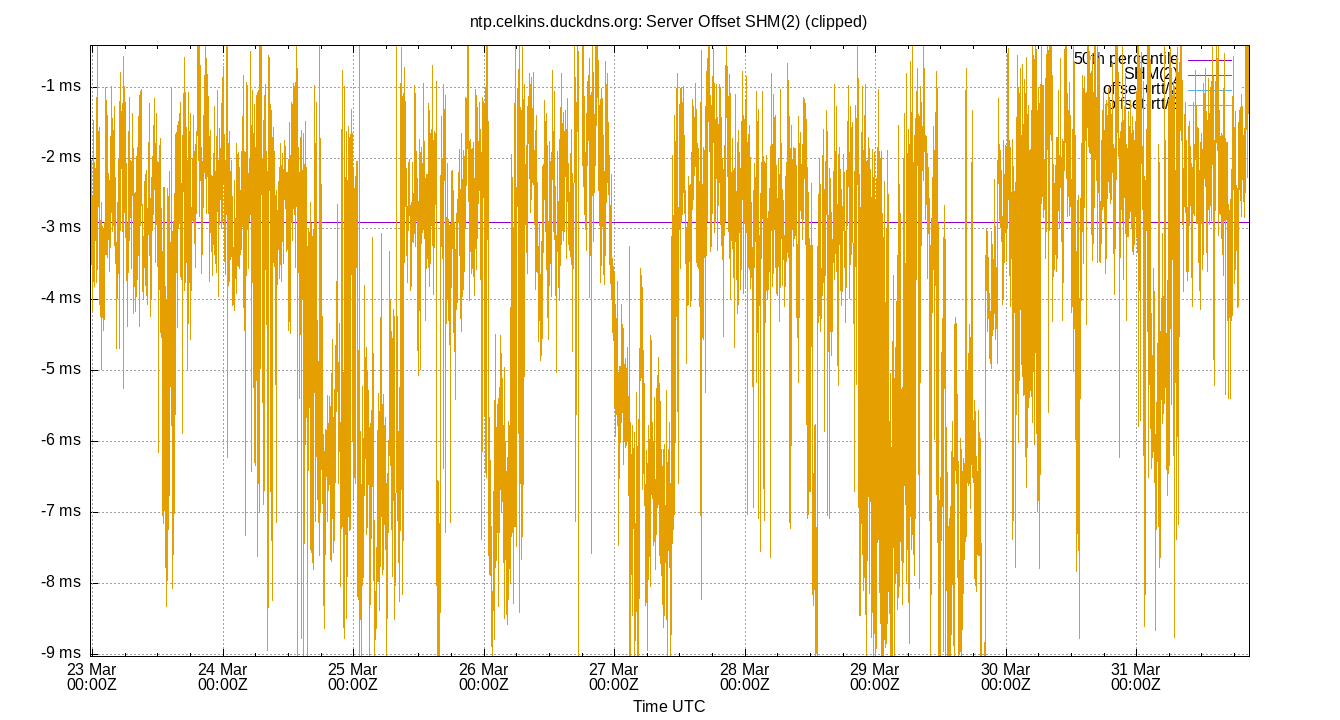

peer offset SHM(2) plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset SHM(2) -8.879 -5.387 -4.831 -3.454 -1.039 0.558 271.785 3.792 5.945 3.641 -3.260 ms 55.17 4611

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



Server Jitters

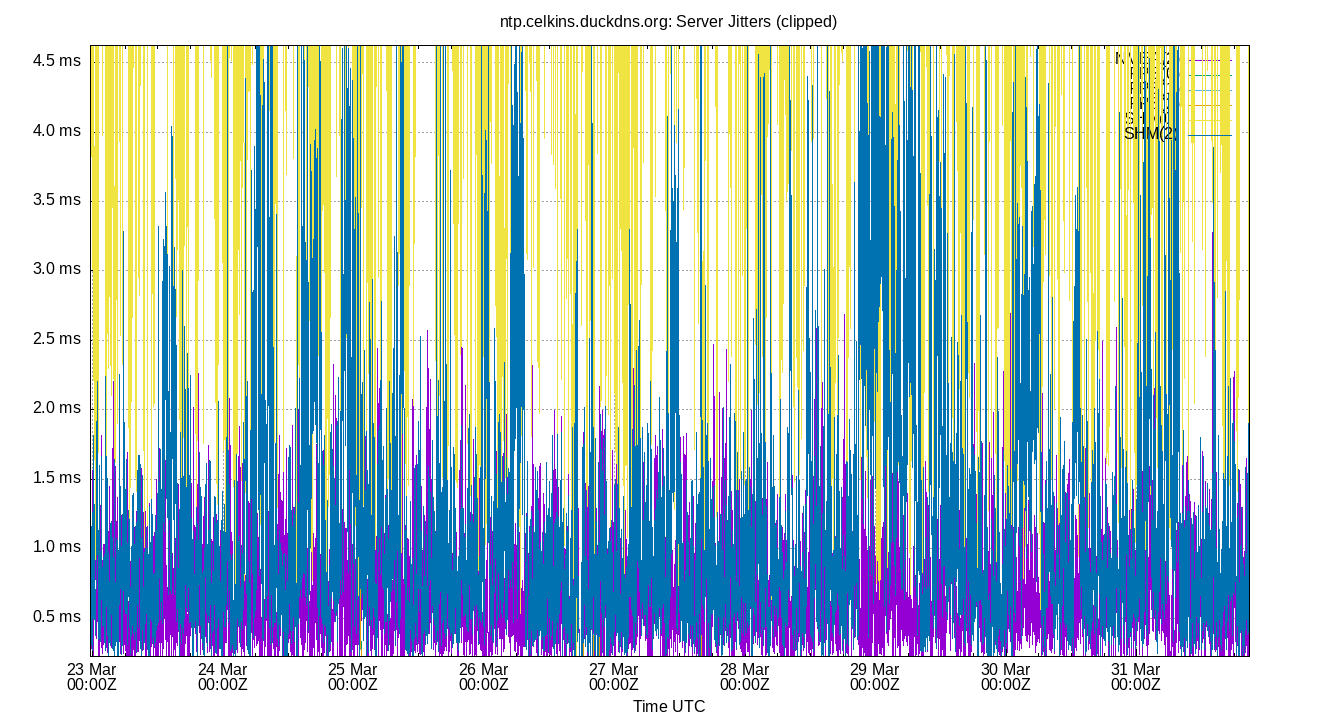

peer jitters plot

The RMS Jitter of all refclocks and servers. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter NMEA(2)

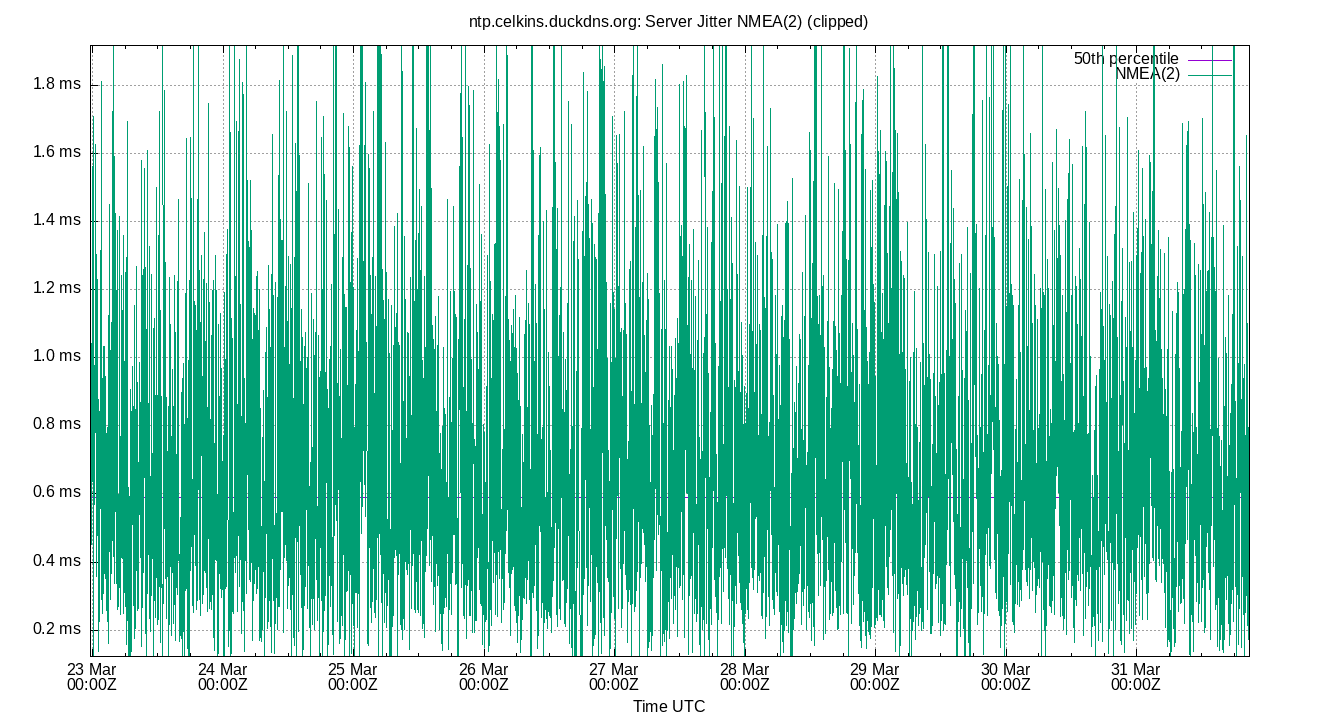

peer jitter NMEA(2) plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter NMEA(2) 0.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000 ns nan nan

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter PPS(0)

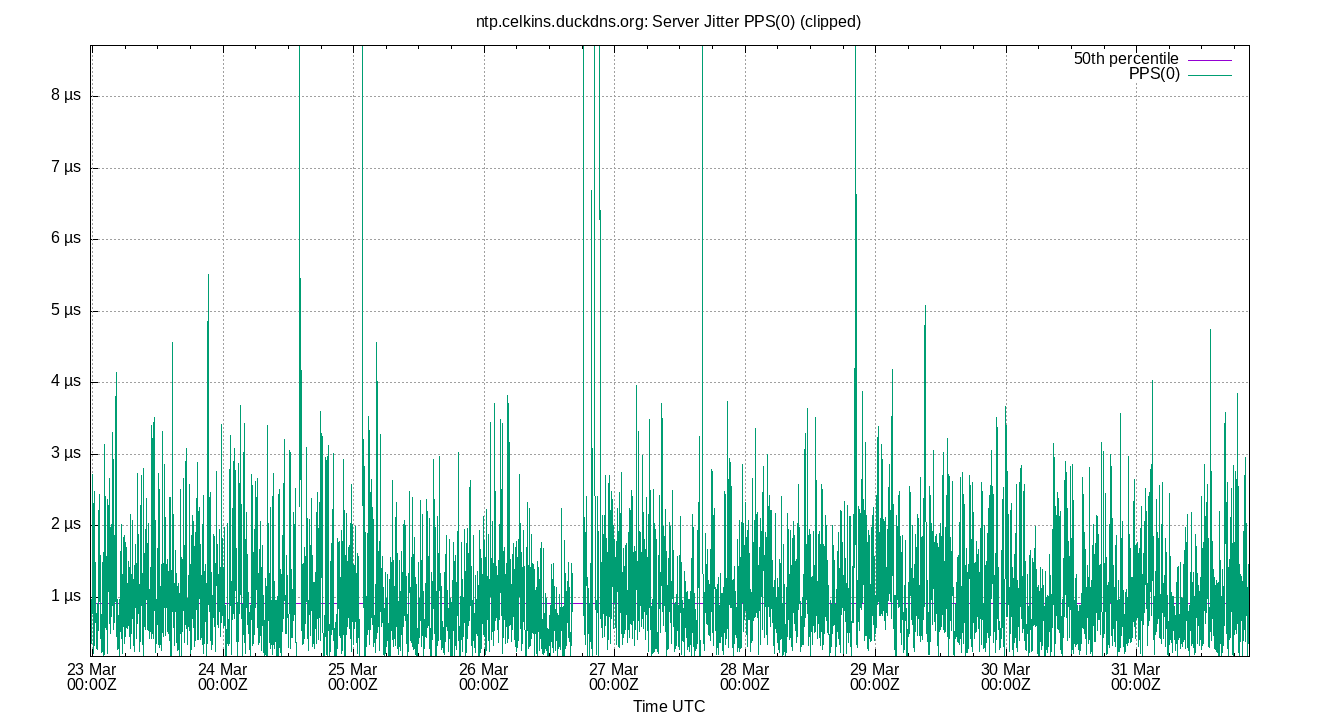

peer jitter PPS(0) plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter PPS(0) 0.000 0.122 0.202 0.648 1.728 2.451 6,885.202 1.526 2.329 85.828 2.438 µs 53.49 3331

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter PPS(1)

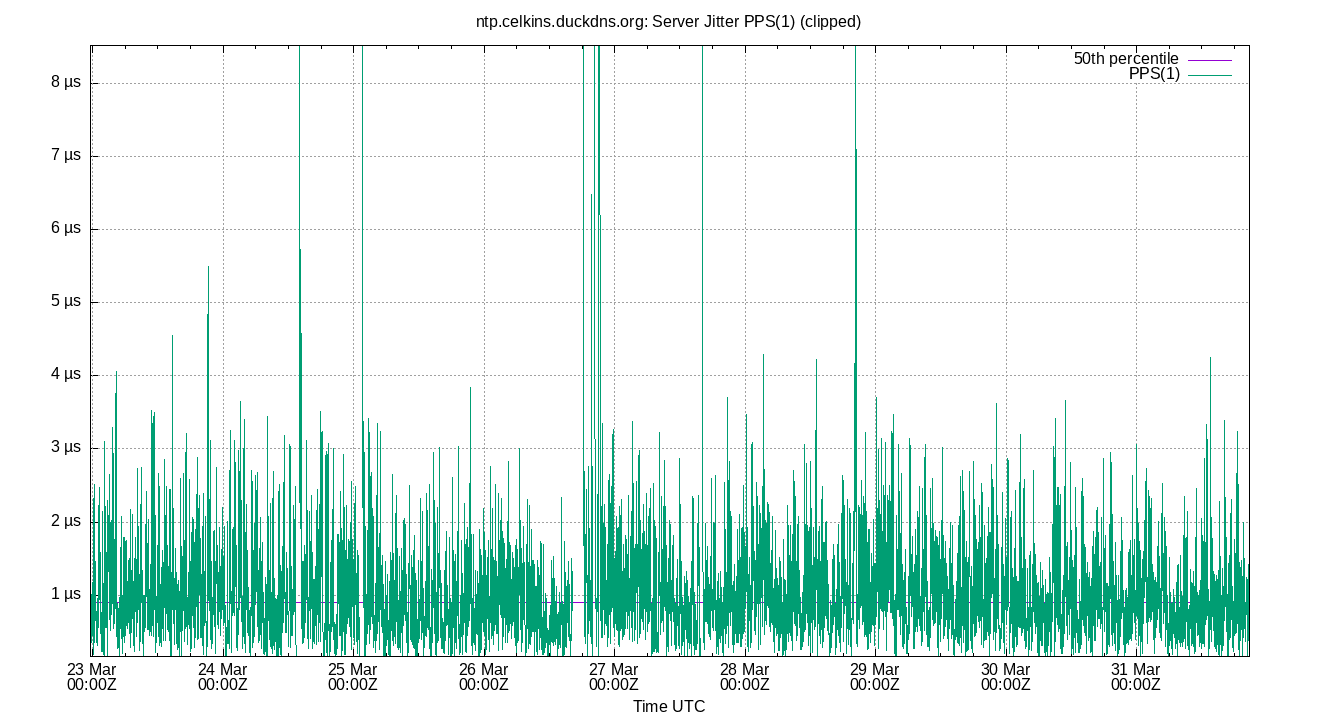

peer jitter PPS(1) plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter PPS(1) 0.000 0.123 0.203 0.650 1.724 2.454 6,761.511 1.521 2.331 85.011 2.426 µs 53.22 3292

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter PPS(2)

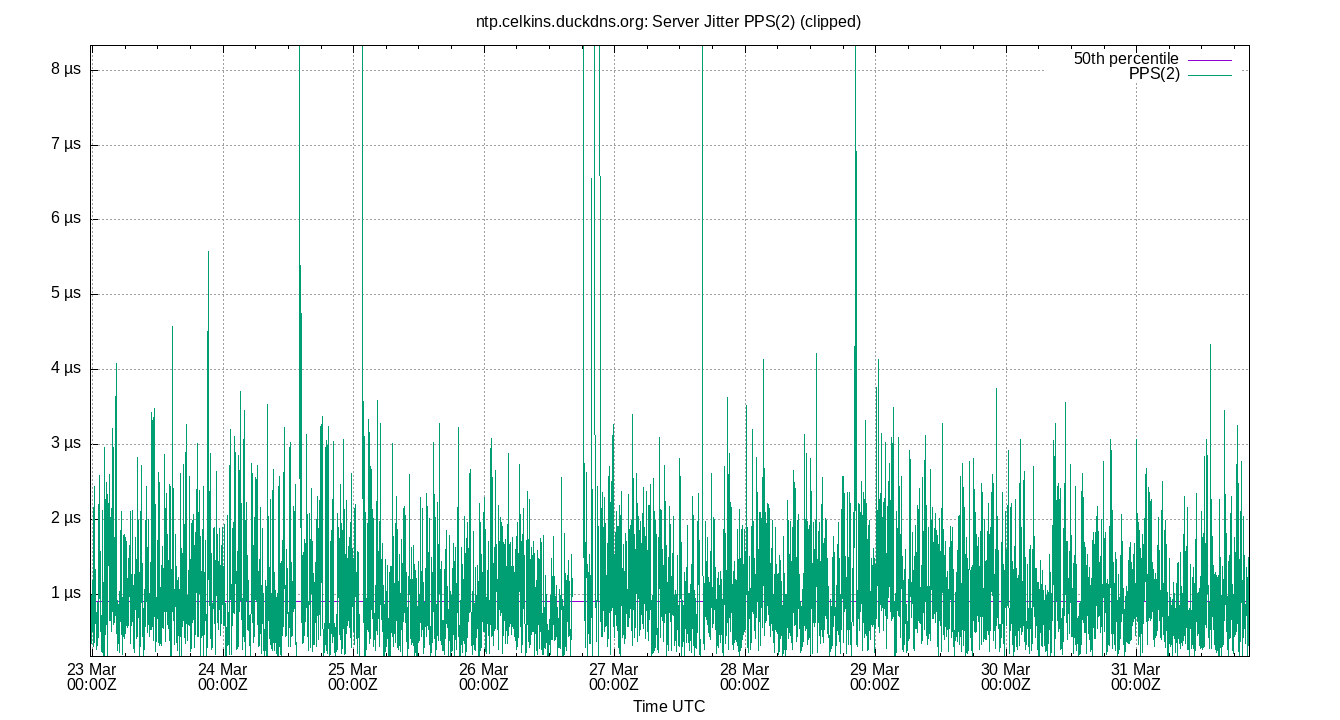

peer jitter PPS(2) plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter PPS(2) 0.000 0.129 0.206 0.658 1.740 2.489 6,507.980 1.534 2.360 83.561 2.429 µs 51.87 3107

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter SHM(0)

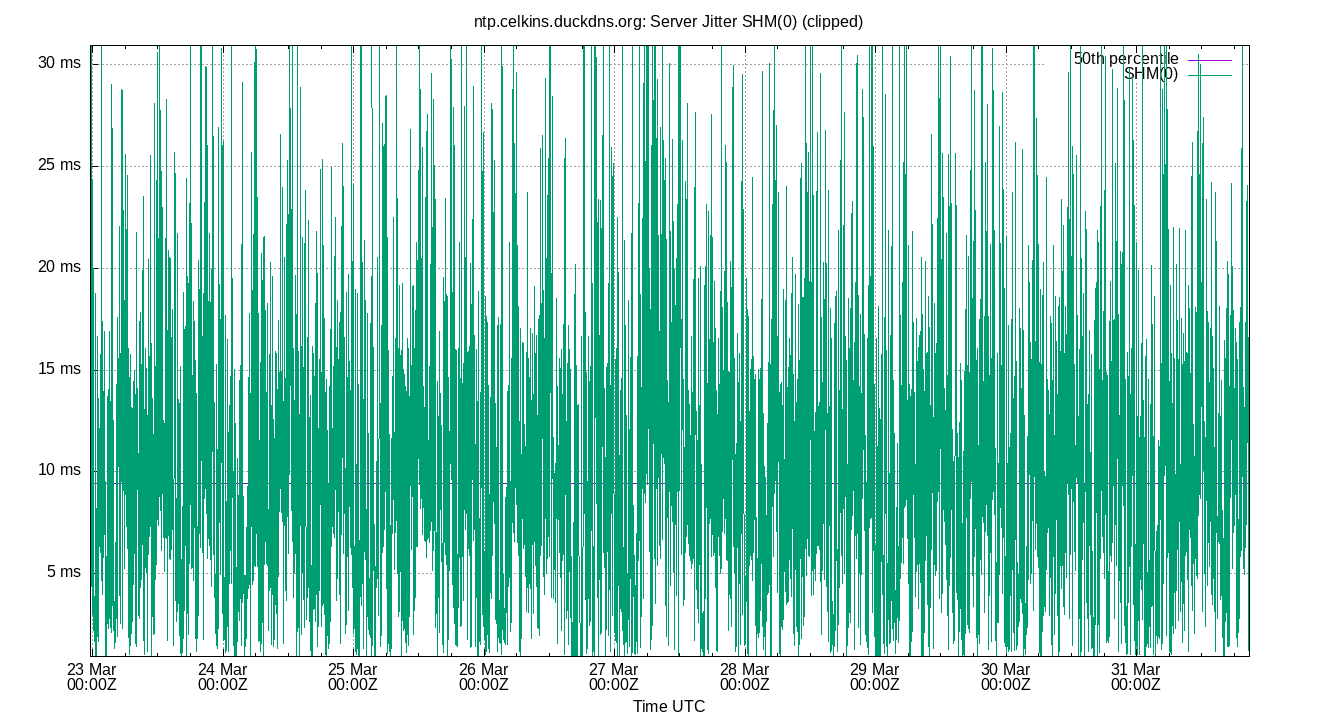

peer jitter SHM(0) plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter SHM(0) 0.000 1.558 2.473 9.478 22.363 29.754 411.317 19.890 28.196 7.251 10.559 ms 12.02 431

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter SHM(2)

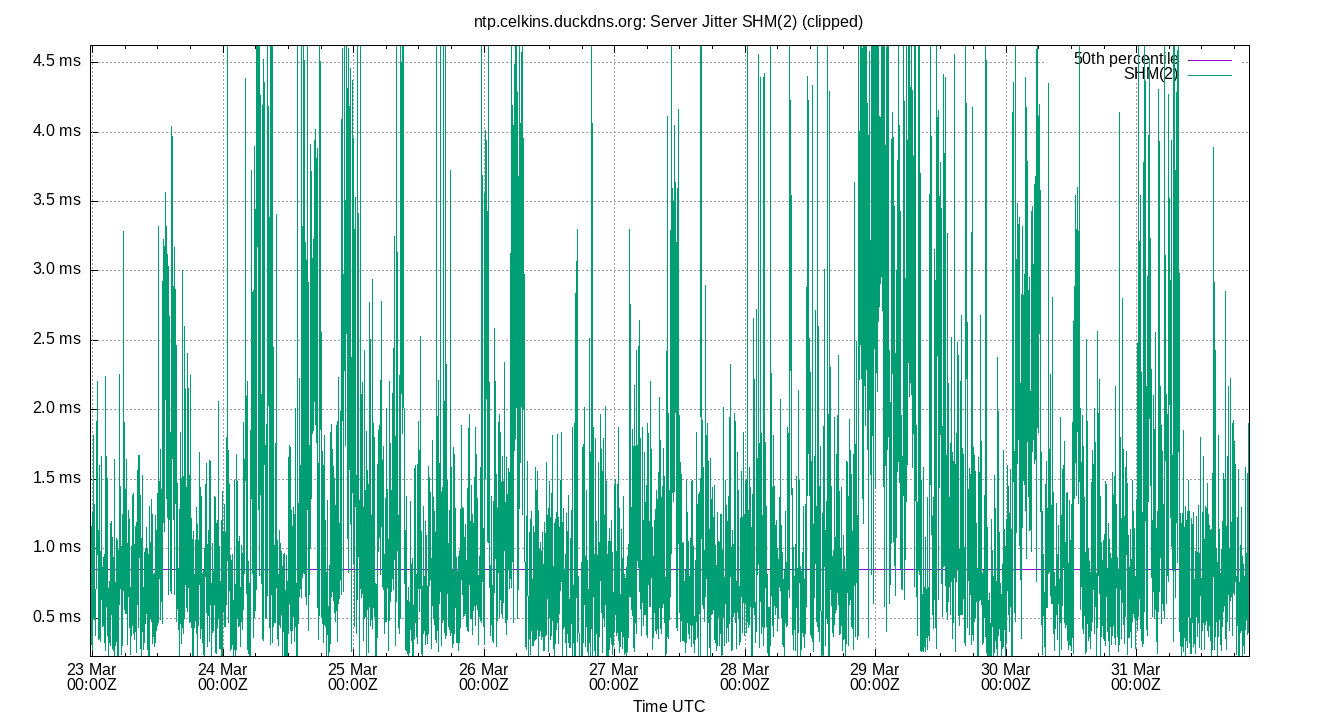

peer jitter SHM(2) plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter SHM(2) 0.000 0.223 0.314 0.688 1.514 2.039 7.502 1.200 1.816 0.401 0.773 ms 5.795 30.62

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Summary


Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local Clock Frequency Offset -22.399 -22.362 -22.298 -21.772 -20.717 -20.601 -20.477 1.581 1.761 0.490 -21.686 ppm -9.277e+04 4.204e+06
Local Clock Time Offset -9,659.219 -2.487 -1.548 0.082 1.846 2.895 7,315.189 3.394 5.382 83.225 0.488 µs 7.515 9246
Local RMS Frequency Jitter 0.000 1.110 1.526 3.242 7.149 10.184 62.839 5.623 9.074 2.102 3.684 ppb 7.872 106.6
Local RMS Time Jitter 0.099 0.226 0.310 0.796 1.788 2.371 5,614.831 1.478 2.145 65.720 1.902 µs 69.07 5352
Server Jitter NMEA(2) 0.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000 0.000 ns nan nan
Server Jitter PPS(0) 0.000 0.122 0.202 0.648 1.728 2.451 6,885.202 1.526 2.329 85.828 2.438 µs 53.49 3331
Server Jitter PPS(1) 0.000 0.123 0.203 0.650 1.724 2.454 6,761.511 1.521 2.331 85.011 2.426 µs 53.22 3292
Server Jitter PPS(2) 0.000 0.129 0.206 0.658 1.740 2.489 6,507.980 1.534 2.360 83.561 2.429 µs 51.87 3107
Server Jitter SHM(0) 0.000 1.558 2.473 9.478 22.363 29.754 411.317 19.890 28.196 7.251 10.559 ms 12.02 431
Server Jitter SHM(2) 0.000 0.223 0.314 0.688 1.514 2.039 7.502 1.200 1.816 0.401 0.773 ms 5.795 30.62
Server Offset NMEA(2) -559.162 -559.162 -559.162 0.000 258.771 258.771 258.771 817.933 817.933 341.344 -100.131 ms -6.458 16.48
Server Offset PPS(0) -766.967 14.026 14.965 16.528 18.164 19.233 7,258.632 3.199 5.207 57.741 16.980 µs 113.3 1.357e+04
Server Offset PPS(1) -778.067 2.482 3.418 4.987 6.622 7.704 7,247.961 3.204 5.222 57.177 5.434 µs 112.8 1.361e+04
Server Offset PPS(2) -764.482 -1.493 -0.549 1.025 2.641 3.702 7,315.189 3.190 5.195 56.050 1.470 µs 116.2 1.465e+04
Server Offset SHM(0) -641.035 -304.474 -292.102 -267.666 -232.397 -218.834 -9.659 59.705 85.640 18.725 -265.818 ms -3554 5.468e+04
Server Offset SHM(2) -8.879 -5.387 -4.831 -3.454 -1.039 0.558 271.785 3.792 5.945 3.641 -3.260 ms 55.17 4611
TDOP 0.000 0.000 0.000 0.680 1.170 1.520 3.580 1.170 1.520 0.419 0.595 1.34 4.467
nSats 0.000 0.000 0.000 9.000 12.000 12.000 12.000 12.000 12.000 4.460 6.918 nSat 1.07 2.115
Summary as CSV file

Glossary:

frequency offset:
The difference between the ntpd calculated frequency and the local system clock frequency (usually in parts per million, ppm)
jitter, dispersion:
The short term change in a value. NTP measures Local Time Jitter, Refclock Jitter, and Server Jitter in seconds. Local Frequency Jitter is in ppm or ppb.
kurtosis, Kurt:
The kurtosis of a random variable X is the fourth standardized moment and is a dimension-less ratio. ntpviz uses the Pearson's moment coefficient of kurtosis. A normal distribution has a kurtosis of three. NIST describes a kurtosis over three as "heavy tailed" and one under three as "light tailed".
ms, millisecond:
One thousandth of a second = 0.001 seconds, 1e-3 seconds
mu, mean:
The arithmetic mean: the sum of all the values divided by the number of values. The formula for mu is: "mu = (∑xi) / N". Where xi denotes the data points and N is the number of data points.
ns, nanosecond:
One billionth of a second, also one thousandth of a microsecond, 0.000000001 seconds and 1e-9 seconds.
percentile:
The value below which a given percentage of values fall.
ppb, parts per billion:
Ratio between two values. These following are all the same: 1 ppb, one in one billion, 1/1,000,000,000, 0.000,000,001, 1e-9 and 0.000,000,1%
ppm, parts per million:
Ratio between two values. These following are all the same: 1 ppm, one in one million, 1/1,000,000, 0.000,001, and 0.000,1%
‰, parts per thousand:
Ratio between two values. These following are all the same: 1 ‰. one in one thousand, 1/1,000, 0.001, and 0.1%
refclock:
Reference clock, a local GPS module or other local source of time.
remote clock:
Any clock reached over the network, LAN or WAN. Also called a peer or server.
time offset:
The difference between the ntpd calculated time and the local system clock's time. Also called phase offset.
σ, sigma:
Sigma denotes the standard deviation (SD) and is centered on the arithmetic mean of the data set. The SD is simply the square root of the variance of the data set. Two sigma is simply twice the standard deviation. Three sigma is three times sigma. Smaller is better.
The formula for sigma is: "σ = √[ ∑(xi-mu)^2 / N ]". Where xi denotes the data points and N is the number of data points.
skewness, Skew:
The skewness of a random variable X is the third standardized moment and is a dimension-less ratio. ntpviz uses the Pearson's moment coefficient of skewness. Wikipedia describes it best: "The qualitative interpretation of the skew is complicated and unintuitive."
A normal distribution has a skewness of zero.
upstream clock:
Any server or reference clock used as a source of time.
µs, us, microsecond:
One millionth of a second, also one thousandth of a millisecond, 0.000,001 seconds, and 1e-6 seconds.



This page autogenerated by ntpviz, part of the NTPsec project
